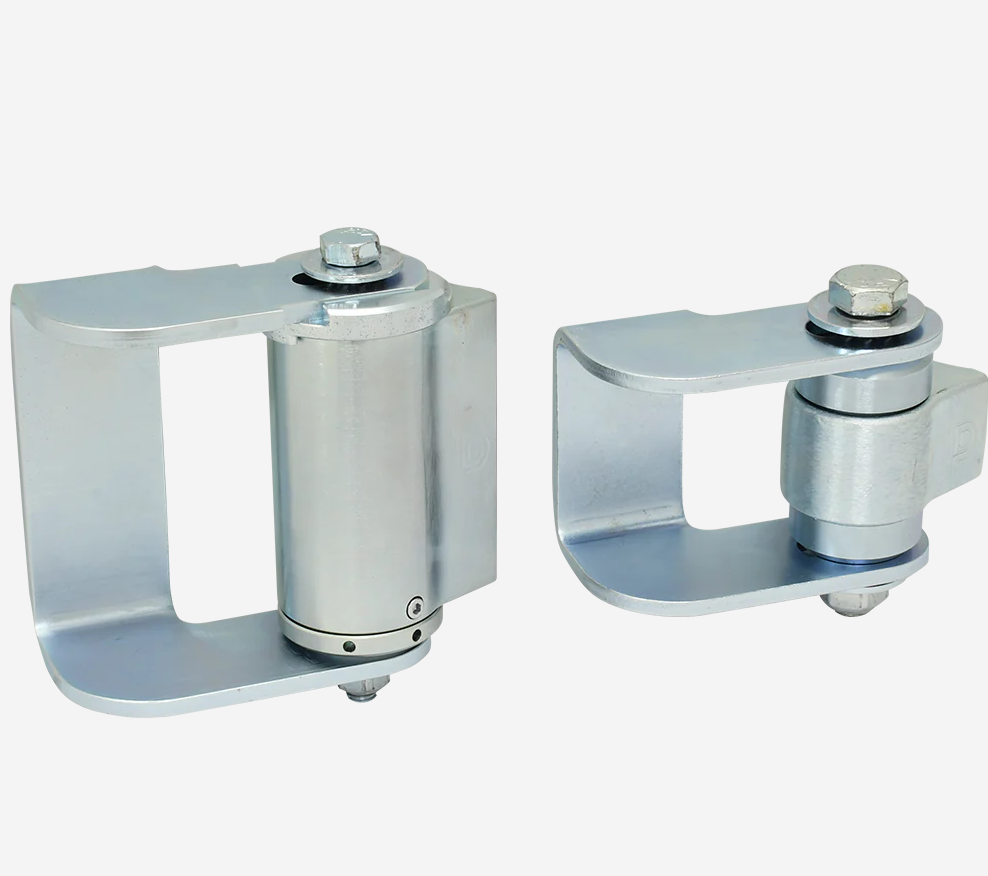

D&D BadAss Weld-on Face Mount Self-Closing Hinge Set 140kg / Set
The Self-Closing Badass Hinge Set is specifically designed for gates weighing up to 140 kg, The face mount, self-closing gate hinge offers a full 180º gate opening for an unobstructed passage, with gate gaps as small as 13mm. Weld-on and bolt-on models available. Horizontally adjustable, 13mm to 25mm gate gap offers heightened security and a symmetrical balance when installed with small gap latches. No greasing or maintenance required on sealed bearings
Opens to 180° for unobstructed pass through
• Achieve gate gaps as small as 13mm
• Horizontally adjustable from 13mm to 25mm for precise installation
• Both weld-on and bolt-on models available
• No greasing or maintenance required on sealed bearings. EVER!
• Horizontal adjustability is ideal for panic bar installations
• 5 tension-adjustment settings
• Self-closing maximum gate weight: 200kg (with 2 closers) CI3825FM
• Self-closing maximum gate weight: 140kg (with a closer and plain hinge set CI3850FM)
Gate Application | Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate |
Gate Type | Self-Closing |
Gate Material | Steel/Ornamental Iron |
Approx Gate Size | 1.5m x 2m (6ft W x 8ft H) |
Gate Frame/Post Shape | Square-to-Square, Square-to-Round |
Min Post Size | 38mm+ (1½") |
Ideal Gate Gap | 13mm-25mm (½"- 1") |
Fixing Method | Weld-on |
Colour/Finish | Zinc |
| Brand: D & D Technologies |
| Material: Galvanised steel |
| Colour: Silver |
Internal Reference:
AHN132
