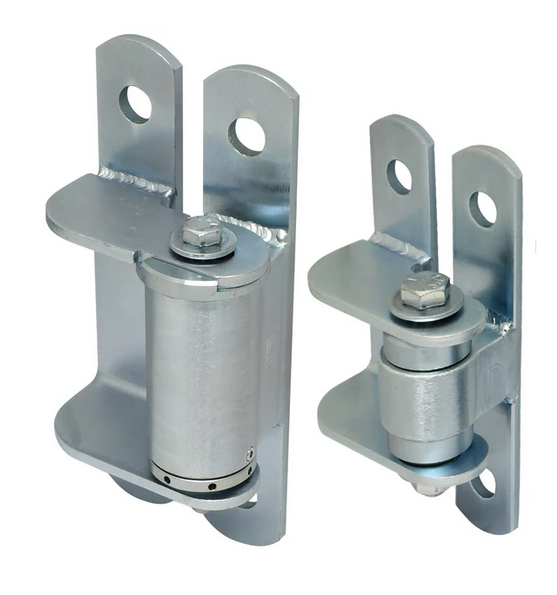

D&D BadAss Bolt-on Face Mount Self-Closing Hinge Set 140kg / Set

https://www.gategear.com.au/web/image/product.template/16488/image_1920?unique=a21ab52

Description:


The Self-Closing Badass Hinge Set is specifically designed for gates weighing up to 140 kg,  The bolt-on, self-closing gate hinges are easy to install and adjust for perfect installation. Compatible for use on aluminium gates for non-welding and high-traffic gates to ensure correct movement. Horizontally adjustable for perfect installations that ensures proper gate function. The Bolt-On BadAss was designed to be used on gates where welding the hinges to the gate and the end post is not an option.

Opens to 180° for unobstructed pass through

• Achieve gate gaps as small as 13mm

• Horizontally adjustable from 13mm to 25mm for precise installation

• Both weld-on and bolt-on models available

• No greasing or maintenance required on sealed bearings. EVER!

• Horizontal adjustability is ideal for panic bar installations

• 5 tension-adjustment settings

• Self-closing maximum gate weight: 200kg (with 2 closers) CI3835FM

• Self-closing maximum gate weight: 140kg (with a closer and plain hinge set) CI3860FM

Gate Application

Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate

Gate Type

Self-Closing

Gate Material

Steel/Ornamental Iron

Approx Gate Size

1.5m x 2m (6ft W x 8ft H)

Gate Frame/Post Shape

Square-to-Square, Square-to-Round

Min Post Size

38mm+ (1½")

Ideal Gate Gap

13mm-25mm (½"- 1")

Fixing Method

Weld-on, Bolt-on

Colour/Finish

Zinc


$ 432.27 $ 432.27

GST Exclusive

Not Available For Sale

  • Brand
  • Material
  • Colour

This combination does not exist.

Contact Us
Brand: D & D Technologies
Material: Galvanised steel
Colour: Silver

Internal Reference: AHN133
