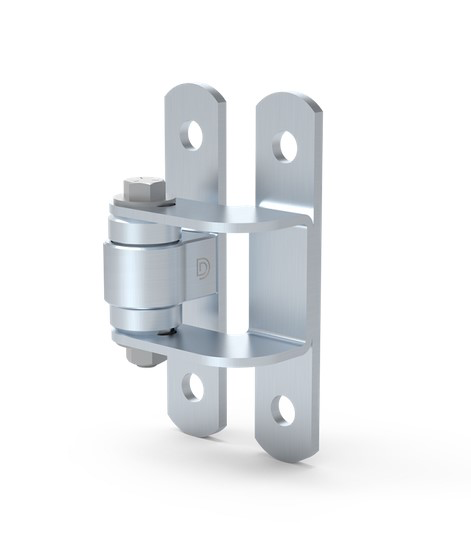

D&D Steel BadAss Face Mount Hinge for Gates up to 450 kg - Zinc Finish / Each
Description:
Steel BadAss Face Mount Hinge for Gates upto 450 kg - Zinc Finish / Each
The Bolt-On BadAss was designed to be used on gates where welding the hinges to the gate and the end post is not an option. Due to SHUT IT’s unique bushing design The Bolt-On BadAsses, like all other SHUT IT gate hinges, produces near frictionless movement with maintenance free usage. The CI3720 is sold as an individual item.
Specifications
Hinge name and code | Shut It® BadAss C13720 |
Hinge material | Zinc coated steel (safe to powdercoat) |
Gate Application | Non self closing, Pedestrian Gate, Driveway Gate – Double, Driveway Gate – Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate |
Gate material suitability | Steel |
Suit gate size/loading | Maximum gate size 2m H x 3m W – (7ft x 10ft) / loading 900kg per gate / maximum gate weight 500KG |
Gate Frame/Post Shape | Square-to-Square |
Opening | Opens to 180 degrees |
Min Post Size | 38mm+ (1½”) |
Ideal Gate Gap | 74-86mm (can achieve gaps of 13mm) / horizontally adjustable |
Fixing Method | Bolt-On (4x16mm diameter holes) |

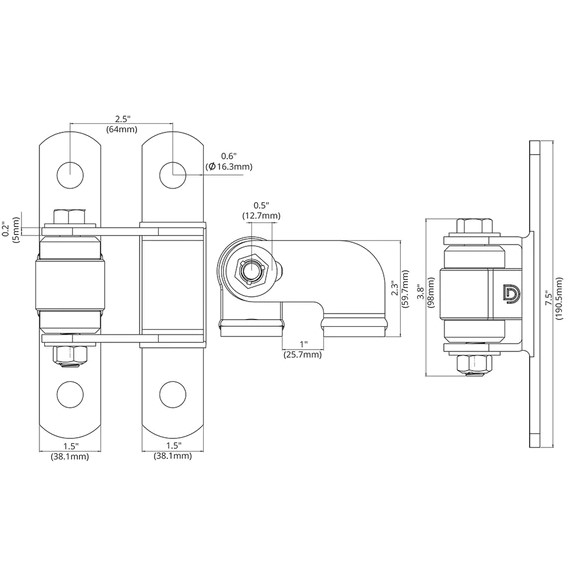

Hinge measurements | 191x40mm backing plate x 2 / 40mm barrell / 60mm between the hinge plates |
Hinge weight | 1.8kg per hinge |
Boxed size and weight per pair | 220x190x80mm / 3.7kg |
Manufactured in | United States |
| Brand: D & D Technologies |
| Material: Galvanised steel |
| Colour: Silver |
Internal Reference:
AHN156
