Digital Bluetooth Touch Keypad Waterproof and Weather resistant Anti-Vandal PIN 12/24 V

https://www.gategear.com.au/web/image/product.template/16577/image_1920?unique=b97c4e4

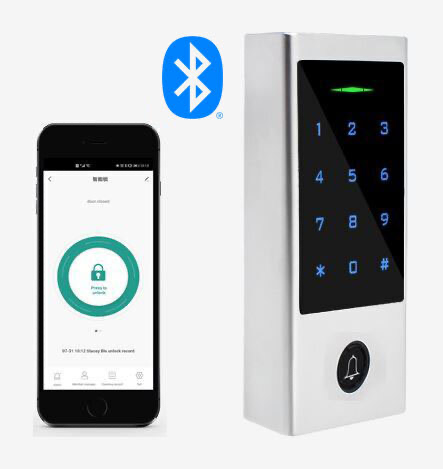

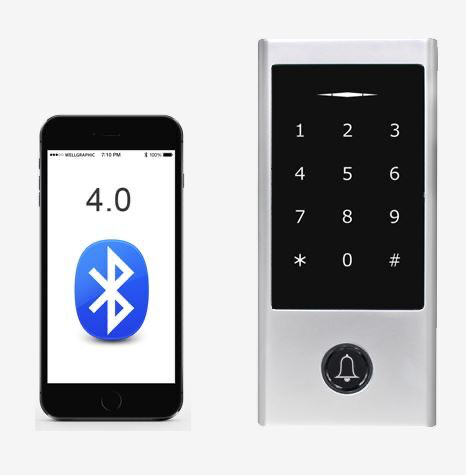

Digital Outdoor Touch Keypad & Reader Waterproof and weather resistant Anti-Vandal PIN 12/24 V

The Bluetooth-enabled waterproof touch keypad + RFID access controller. It's integrated

with Tuya which supports 100 users (including 255  card/ PIN users). It's available for both iOS and Anddroid.

Package includes:
1 x Metal Access Control
1 x Installation Kit
1 x User Manual

Features:

  • Waterproof, conforms to IP66
  • Metal housing, anti-vandal
  • Card type:  EM Card or Mifare Card
  • iOS and Android available
  • Add / Delete users by APP
  • Support checking Opening Record
  • Support Gateway
  • Multiple Access Modes: Smartphone, Card, PIN
  • Compatible with all bluetooth - Enabled mobile phone (Version: 4.0 above)
  • Various Methods to open the gate/door, make it easy and safe entrance
  • Support Adding / Deleting Users by APP
  • Support view opening record
  • App name TuyaSmart available both for ios and android
User Capacity
 Common User
 Visitor User
 Panic User
Hardware User: 1000          APP User: 100 (including 255  card/ PIN users)
988
10
2
PIN Length4~6 digits
Operating Voltage
 Idle Current
 Active Current
12~28V AC/DC
 â‰¤ 60mA
≤ 150mA
Proximity Card Reader
 Radio Technlogy
 Read Range		EM or Mifare
125KHz/13.56MHz
2~6cm
Wiring ConnectionsRelay output, exit button, alarm, door contact, Wiegand input/output
Relay
Adjustable Relay Output Time
Lock Output Load
One (NO, NC, Common)
0~99 Seconds (5 seconds default)
2 Amp Maximum
Wiegand Interface


PIN Output

EM card version: Wiegand 26~44 bits input & output (Factory default: Wiegand 26bits)

Mifare card version:Wiegand 26~44 bits,56bits,58bits input & output (Factory default: Wiegand 34bits)

4 bits,8bits (ASCII),10 digits Virtual Number(Factory default:4bits)

Environment
Operating Temperature
Operating Humidity
Meets IP66
-40°C ~ 60°C (-40°F ~ 140°F)
0%RH ~ 98%RH
Physical
Color
Dimensions
Unit Weight
Shipping Weight
Zinc-Alloy
Sliver & Black
L145x W68 x H25 (mm)
500g
615g

$ 171.82 $ 171.82 GST Exclusive

Not Available For Sale

  • Material
  • Colour

This combination does not exist.

Contact Us
Material: Aluminium
Colour: Silver

Internal Reference: ALNK910
