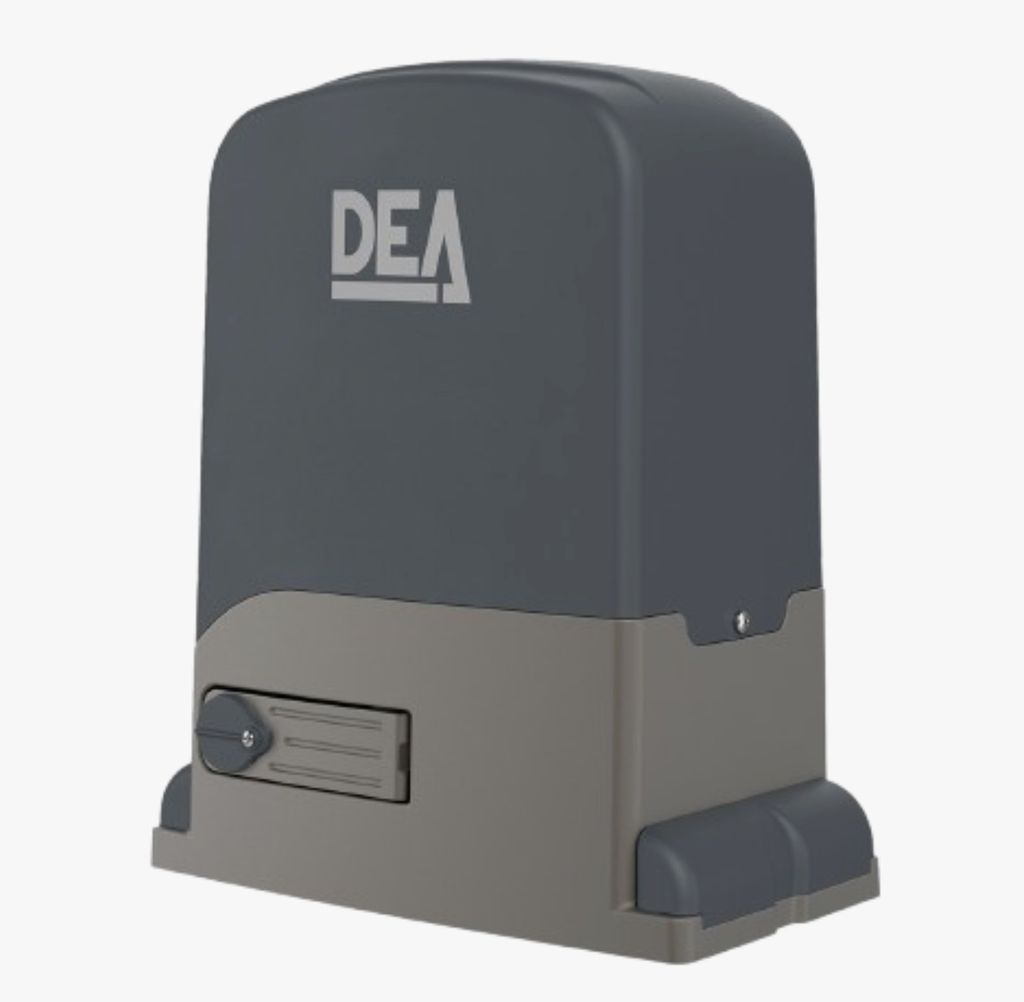

These Italian made heavy duty sliding gate motors are designed for inclines and industrial applications where a hard working motor is required.
This includes:
1 x 24V Motor (REV)
Technical Specifications
Specification REV24/M BOOST
Motor power supply (V) 24V
Maximum power absorption (W) 800
Max thrust (N) 861
Leaf max weight (kg) 1200
Duty cycle (cycles/hour) for 8m leaf length 22
Operating temperature (°C) -20 to +50
Speed (m/min) 26
Standard pinion Z18
Protection level IPX4
