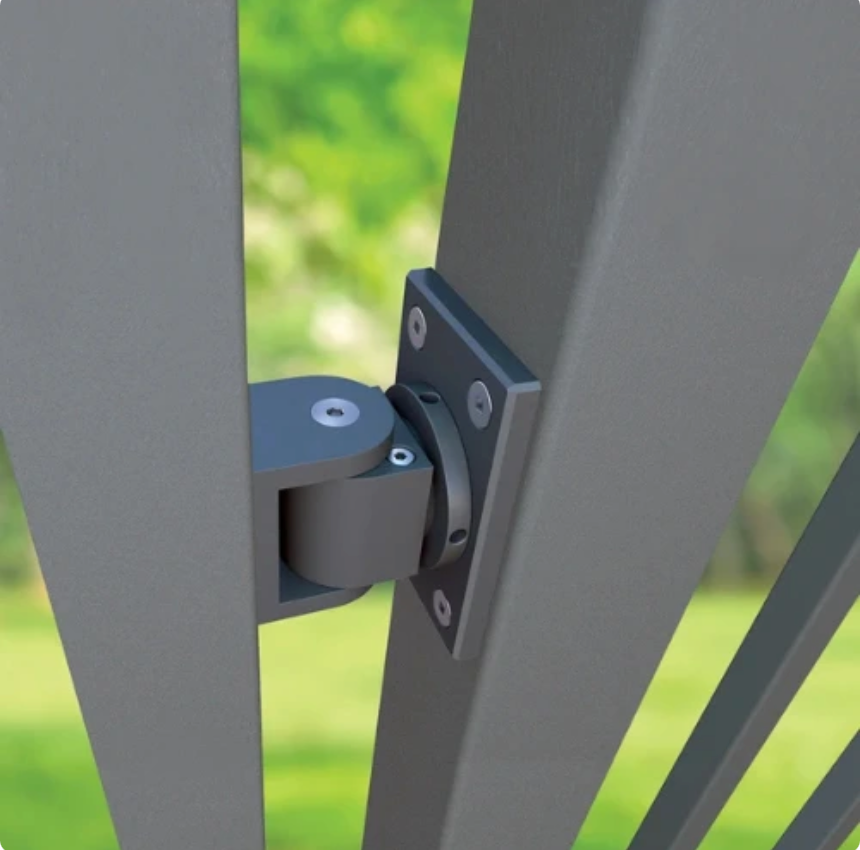

The D&D SureClose 108SF W is a commercial-grade hydraulic safety hinge closer designed for steel and ornamental iron gates. This centre-mount weld-on system provides smooth, controlled self-closing with a final snap-close action to help ensure the gate securely engages with its latch.
The SF Safety model is specifically designed for pool, child-safety and other safety gates. It self-closes from 90° and does not have a hold-open function, helping prevent the gate from being unintentionally left open.

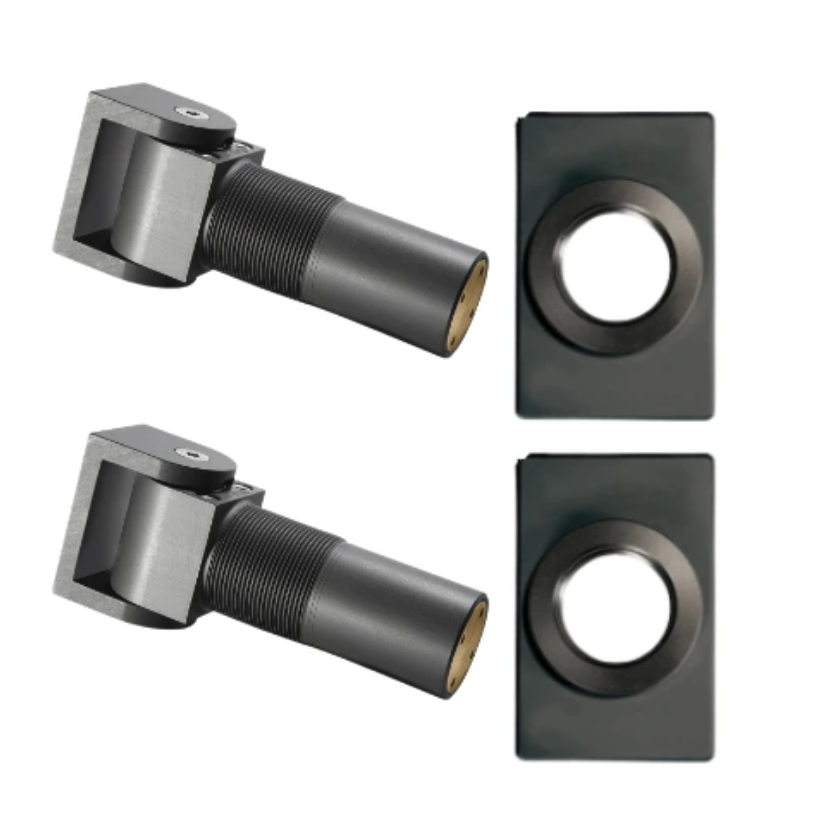

This package includes two D&D SureClose 108SF W hinge closers and two 7526 Steel Weld-On Centre Mount Post Mounting Brackets, providing the components required to install a two-hinge centre-mount system.
Key Features
- D&D SureClose 108SF W Safety Hinge Closer
- Centre-mount design
- Weld-on installation for steel gates
- Final snap-close action for reliable latch engagement
- Self-closing from 90°
- Maximum gate swing: 90°
- No hold-open function – suitable for safety and pool gates
- Adjustable closing speed and final snap action
- Hydraulic mechanism concealed within the post for a clean appearance and added protection
- Horizontal adjustment through the centre-mount post bracket
- Maintenance-free hydraulic design
- Suitable for square gate frames and posts
- Ideal for pool, child-safety, pedestrian, residential and commercial gates
Package Includes
- 2 × D&D SureClose 108SF W Safety Hinge Closers – 75108124M
- 2 × D&D SureClose 7526 Steel Weld-On Centre Mount Post Mounting Brackets
- Gate mounting brackets supplied with the hinge closers
- Adjustment tools supplied with the hinge closers

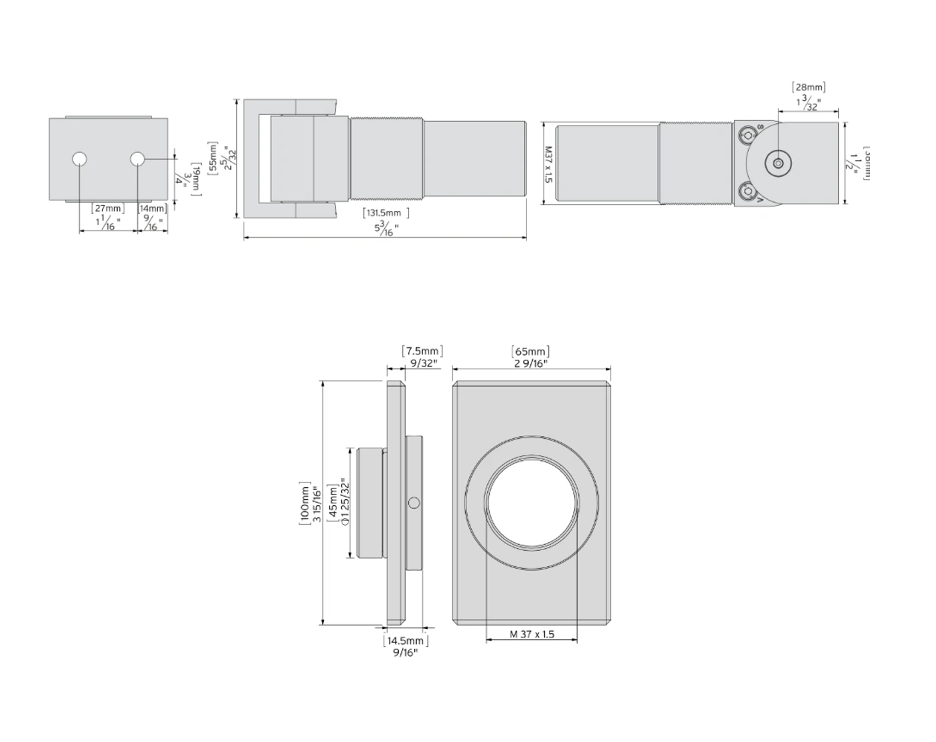

Specifications
- Hinge Model: 108SF W
- Product Code: 75108124M
- Post Bracket: 7526 / 0510-05
- Mounting: Centre Mount, Weld-On
- Material: Steel gate/post applications
- Gate Swing: 90°
- Self-Closing: From 90°
- Final Snap Action: Yes
- Hold Open: No
- Ideal Hinge Gap: 64–76 mm
- Minimum Post Size: 75 mm for the 108SF W configuration
- Maximum Gate Weight for Snap Close: 80 kg
The 7526 post mounting bracket is a steel weld-on centre-mount bracket with horizontal adjustment and is designed specifically for SureClose centre-mount hinges.
Important: For safety-gate applications, a gate stop must be installed to prevent the gate from opening beyond 90°. Always check applicable local pool and safety-gate requirements before installation.
