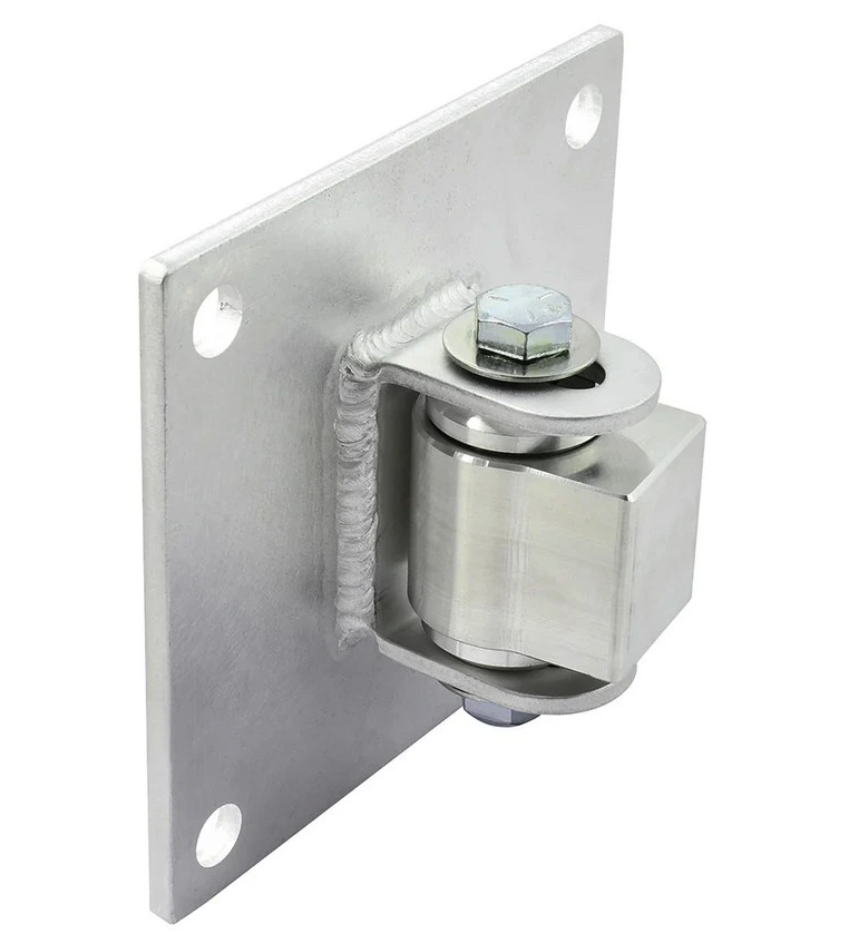

The with wide mounting plates and four anchor points, 6” Half Bolt-On BadAss Hinges help reduce fence post flexing and prevent long-term fatigue. The four anchor points position the bolts on the sides of the fence post rather than in the centre, providing a stronger and more secure connection.
Shut It gate hinges are assembled in the USA and feature the industry’s first maintenance-free, high-temperature sealed bearings. These bearings allow the hinges to be safely powder coated while installed on the gate.
Designed to be bolted or welded onto 6” or larger fence posts
• Wider brackets allow anchor points to be positioned on the sides instead of the center of the fence post, reducing flex and preventing post fatigue
• High-temperature sealed bearings allow safe powder coating with the hinges installed on the gate
• Fully sealed bearings require no greasing or maintenance – ever
• Precision bushings evenly distribute gate load for optimal performance and longer service life
• CNC-machined for precision and smooth, near-frictionless operation
• Maximum Gate Load: 1,000 lb (450 kg)
• Maximum Gate Weight: 600 lb (270 kg)
• Backed by a Limited Lifetime Warranty
| Gate Application | Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate |
| Gate Type | Non Self-Closing |
| Gate Material | Aluminum |
| Approx Gate Size | 6ft W x 8ft H (1.5m x 2m) |
| Gate Frame/Post Shape | Square-to-Square, Square-to-Round |
| Min Post Size | 1½"+ (38mm) |
| Ideal Gate Gap | 3 ¼" - 3 ¾" (73-86 mm) |
| Fixing Method | Bolt-On, Weld-On |
| Colour/Finish | Unfinished |
